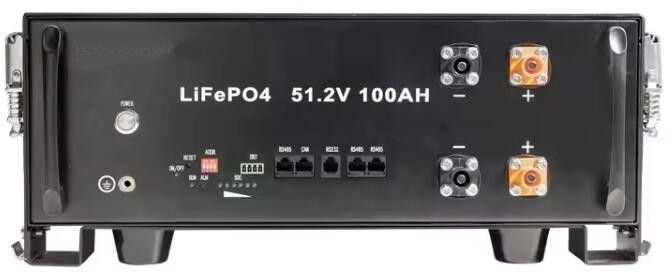

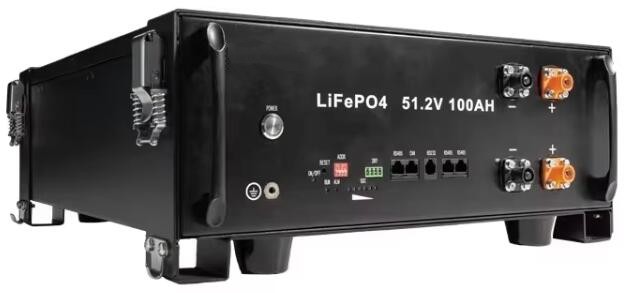

JSTLB0138 Stacked 6000 Cycle Life Lifepo4 Lithium Iron Phosphate

Description



Nominal Voltage:51.2 V
Rated Capacity:100Ah
Absorption Voltage:56.8 to 58.4 V
Float Voltage:56.0 to 56.8 V
Absorption Time:60 to 120 minutes
Temperature Compensation:No
Charge Cut-off Voltage:58.4 V
Discharge Cut-off Voltage:40 V
Recommended Charge Current:50A
Recommended Discharge Current:50A
Maximum Continuous Charge Current:100A
Maximum Continuous Discharge Current:100A

Peak Discharge Curren:120A

 a.Highest safety, battery is made from LiFePO4 chemistry and comply with highest international safety and transport standard.

b.Modular and flexible, support up to 15 batteries connect together to expand the system energy.

c.Build-in pre-charge circuit to avoid rush current when connecting with different inverter/chargers.

d.Automatic dynamic addressing function when connected multiple batteries together.

e.LiFePO4 as cathode material and automatic balancing function to meet long cycle life

f.Support a maximum of 96% DOD under off-grid and back-up application

g.Built in BMS provide warning and protection functions including over-discharged, over-charged, over- current, short-circuit and high/low temperature.
